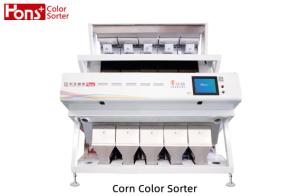

Intelligent 5 Chutes CCD Camera Maize/Corn Grain Color Separator Machine
Sorting materials
Rice: Rice / Brown rice / Glutinous rice / Millet / Sorghum / Myotonin / Black rice
Beans: soybeans / mung beans / red beans / black beans / peas / broad beans / coffee beans
Seeds: cotton seeds / corn seeds / wheat seeds / pepper seeds / onion seeds
Nuts and kernels: cashew nuts / peanuts / walnuts / pistachios
Dried vegetables: pepper / garlic flakes / carrot grains / onions / cabbage
Industrial products: Broken glass / quartz sand / recycled plastic / salt / minerals / monosodium glutamate / white sugar / pill / pearl
Economic crops: raisins / medlars / lilies / dates / shrimp bran / tobacco / agaric
Machine parameters
| Name | S1 | S3 | S4 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-252 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 1600Kg-2000Kg | 2000KG-3000KG | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <2.6 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1000KG | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 1870*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8m³/min |
1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11KW | 11kw*2 | 15kw*2 |
| Air tank | | 600L | 800L | 1000L | 1000L |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
Technical characteristic
High speed, resolution ratio CCD camera
High speed line scan, 5000 pixels CCD sensor.
High clear imaging,Nikon CCD camera
Super clear imaging, resolution ratio,color reduction well, no distortion.
International honour brand Weinview touch screen
Swift reaction, high sensitivity, reliable,easy operation.
High luminance LED resource
High luminance, low power consumption ,long life,reliable.
High frequency solenoid valve
Special for color sorting,high frequency, low power consumption,high sorting accuracy.
The advanced operation system
It be widely used for beans, nuts, seeds, peanut, nutlet, sea products, small herds, spices and other materials of high accuracy sorting.
Sorting performance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
